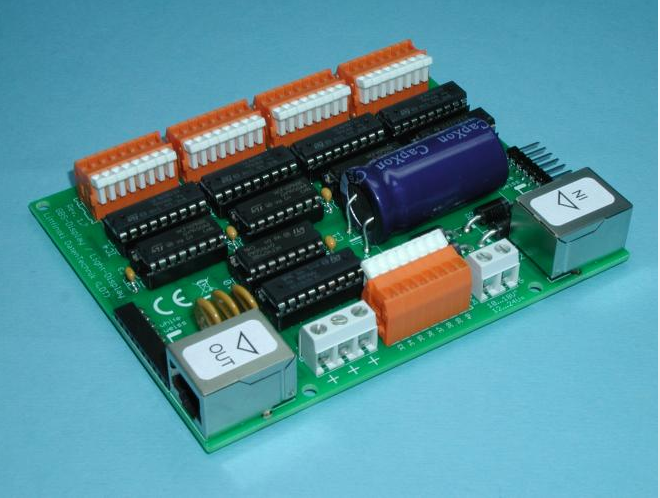

Light-Display-Module
879 SEK
Light-Display-Modules contain 40 outputs with a maximum load of 0.5 Ampere each. They are particular suitable for switching light sources such as incandescent model railway lamps or light emitting diodes (LED).
Description
Article no.: L07.050032
- Each Module will get the voltage from a model railway transformer or a switch mode power supply via the 2-poles supply-clamp. The supply voltage can be between 10 and 18 Volt AC or between 12 and 24 Volt DC.
- Connect the Light-Display-Module to the Light-Interface (LI-LPT or LI-LAN) of the PC-Light-Control Light@Night or to the Light-DEC-Basis-Module of the Light Control Light-DEC via the 10-poles pin-plug-bar.
- On the other side of the module is a 10-poles pin-plug-bar for the direct connection of the next Light-Display- or Light-Power-Module.
- The Module do not need to be connected directly to each other. It is as well possible to connect the module via the “Kabel L@N” or via the screened and therefore interference protected “Kabel Patch” (from Light-Display Version 1.7 and Light-Power Version 1.2).
- BrandLittfinski DatenTechnik
- Mfg. item no050032
- Secure payment by card
- Send e-mail or chat with us if we are online
- We ship world wide
We reserve the right for typos and errors in article descriptions
