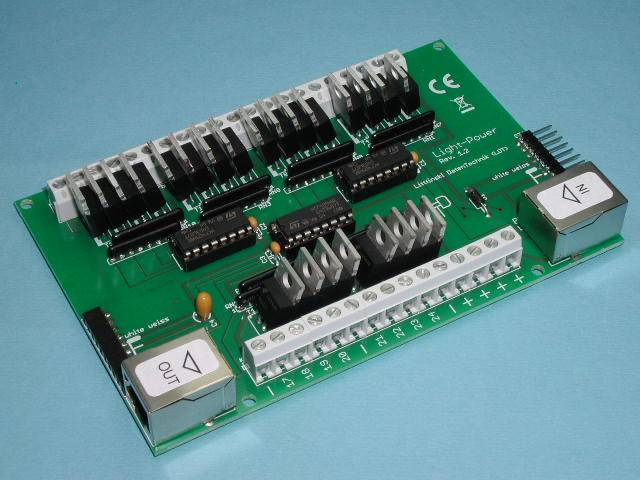

Light-Power-Module
934 SEK
Light-Power-Modules contain 24 outputs with a possible max. current load of 2.5 Ampere each. With reason to the possible high current output they are suitable for switching simultaneous many incandescent model railway lamps e.g. switching simultaneously light poles of one street.
Description
Article no.: L07.050062
- The Light-Power-Modules have to be supplied with 12 to 24 Volt DC.
- Connect the Light-Power-Module to the Light-Interface (LI-LPT or LI-LAN) of the PC-Light-Control Light@Night or to the Light-DEC-Basis-Module of the Light Control Light-DEC via the 10-poles pin-plug-bar.
- On the other side of the module is a 10-poles pin-plug-bar for the direct connection of the next Light-Power- or Light-Display-Module.
- The Module do not need to be connected directly to each other. It is as well possible to connect the module via the “Kabel L@N” or via the screened and therefore interference protected “Kabel Patch” (from Light-Display Version 1.7 and Light-Power Version 1.2).
- BrandLittfinski DatenTechnik
- Mfg. item no050062
