Rökgenerator (DC)

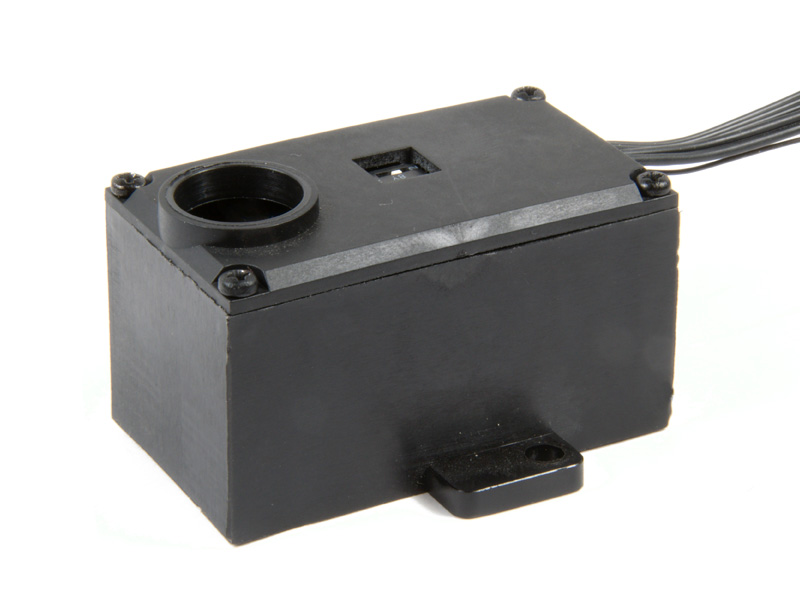

Massoth 8413102 Pulsed Smoke Generator (Analog / Autonomous Operation)

The Massoth 8413102 is a high-performance pulsed smoke generator with analog capabilities, designed for G-scale model railroads. It is capable of operating autonomously in both steam and diesel modes using direct track detection and an integrated software decoder.

Even under analog operation, full functionality is available from voltages as low as 6 V, thanks to the built-in decoder. The recommended fluid fill volume is 4 cm³, with a maximum of 6 cm³ for optimal performance.

The generator supports a clock (pulse) signal to synchronize smoke bursts with wheel rotations, or it can run in diesel mode without the need for an external clock. It features DIP switches for selecting operating mode and number of pulses per wheel revolution (2 or 4) when used in analog mode.
