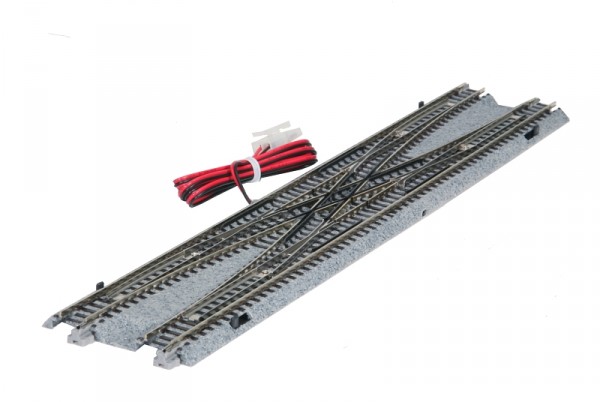

Double Crossover Track, 310mm
711 SEK
Description
Article no.: K03.20210
electrically, 4 points!
1 piece in blister
Code 80
Gauge: 9mm
rail profile height: 2.2mm
Bettungsbreite:
Bettungshöhe: 5mm
Overall height: 7.3mm
threshold distance: 5mm
Perfect track change in N gauge! With the double track connection, the passage and the change from one to the other electrical circuit is simple and reliable.
A special feature of the KATO points are the very flat underfloor drives. Hidden in the turnouts is an extremely robust and powerful solenoid drive. Due to the special construction, the points still remain very low and are original.
The electrical points are powered by a 2-pin connection cable. They are placed with the help of the switch switch item no. 78500, to which the switch cable can be conveniently connected thanks to a plug system. Any number of switch switches can be set together. Before the first switch, however, a rectifier Art.No. 78505 to turn the AC of the transformer into DC. By the way, the parallel track distance is 33mm. The turn-off of the turnout drives takes place via the selector switch # 78500! The current consumption of a switch during switching is 0.5 A
KATO offers an excellent track N-track system with a gray speckled trackbed body (fine grain) that is accurate to scale, extremely stable and ideal for all N-gauge models. The ballast body is made of elastic plastic and is about 25mm wide. The tracks can easily be connected with each other via plug-in connections and snap in with an audible "click".
Would you like to digitize your turnout? Here you can find more about this topic.
1 piece in blister
Code 80
Gauge: 9mm
rail profile height: 2.2mm
Bettungsbreite:
Bettungshöhe: 5mm
Overall height: 7.3mm
threshold distance: 5mm
Perfect track change in N gauge! With the double track connection, the passage and the change from one to the other electrical circuit is simple and reliable.
A special feature of the KATO points are the very flat underfloor drives. Hidden in the turnouts is an extremely robust and powerful solenoid drive. Due to the special construction, the points still remain very low and are original.
The electrical points are powered by a 2-pin connection cable. They are placed with the help of the switch switch item no. 78500, to which the switch cable can be conveniently connected thanks to a plug system. Any number of switch switches can be set together. Before the first switch, however, a rectifier Art.No. 78505 to turn the AC of the transformer into DC. By the way, the parallel track distance is 33mm. The turn-off of the turnout drives takes place via the selector switch # 78500! The current consumption of a switch during switching is 0.5 A
KATO offers an excellent track N-track system with a gray speckled trackbed body (fine grain) that is accurate to scale, extremely stable and ideal for all N-gauge models. The ballast body is made of elastic plastic and is about 25mm wide. The tracks can easily be connected with each other via plug-in connections and snap in with an audible "click".
Would you like to digitize your turnout? Here you can find more about this topic.
- BrandKato
- Mfg item no20210
- Scale1:160 (N)
- Secure payment by card
- Send e-mail or chat with us if we are online
- We ship world wide
We reserve the right for typos and errors in article descriptions
