Savöx SW-0230MG, 8 kg HV Servo 0.13s Metal Gear Waterproof

Savöx SW-0230MG Plus - 8 kg HV Servo 0.13s Metal Gear Waterproof

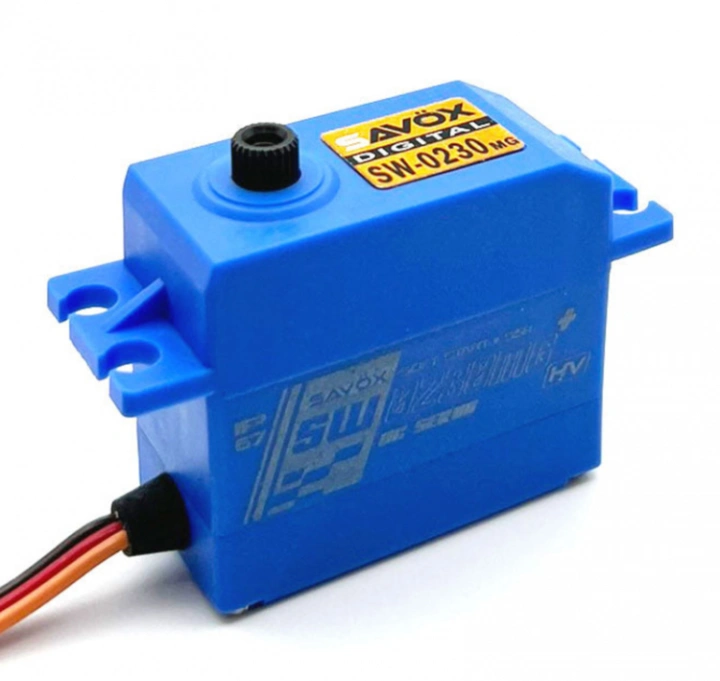

The Savöx SW-0230MG Plus is a digital standard-size servo with metal gears, high-voltage support and a waterproof design. It is well suited for RC cars, trucks and boats where reliable operation in wet conditions is important. The durable metal gear train provides increased durability, while Soft Start and Sanwa SSR compatibility add useful functionality.

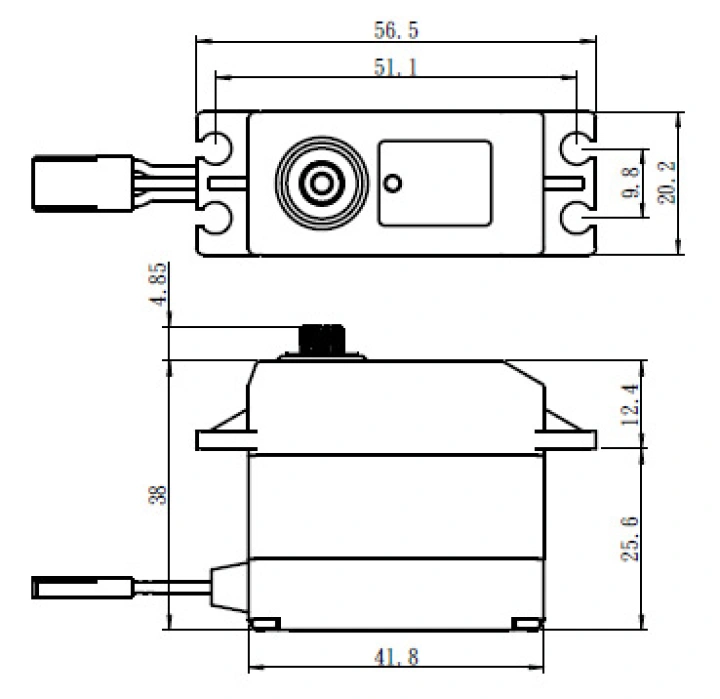

At 6 V, the servo delivers 6.5 kg/cm of torque with a speed of 0.16 seconds per 60 degrees. At 7.4 V, torque increases to 8 kg/cm and speed improves to 0.13 seconds per 60 degrees. The SW-0230MG Plus has a standard-size housing measuring 41.8 x 20.2 x 38 mm and weighs 60 g. It features a 25-tooth output spline, two ball bearings and a 200 mm cable.

The servo operates from -10 to 50 °C, has a 240 Hz refresh rate and offers approximately 130 degrees of maximum travel. Item number: SAV-SW0230MGPLUS.
