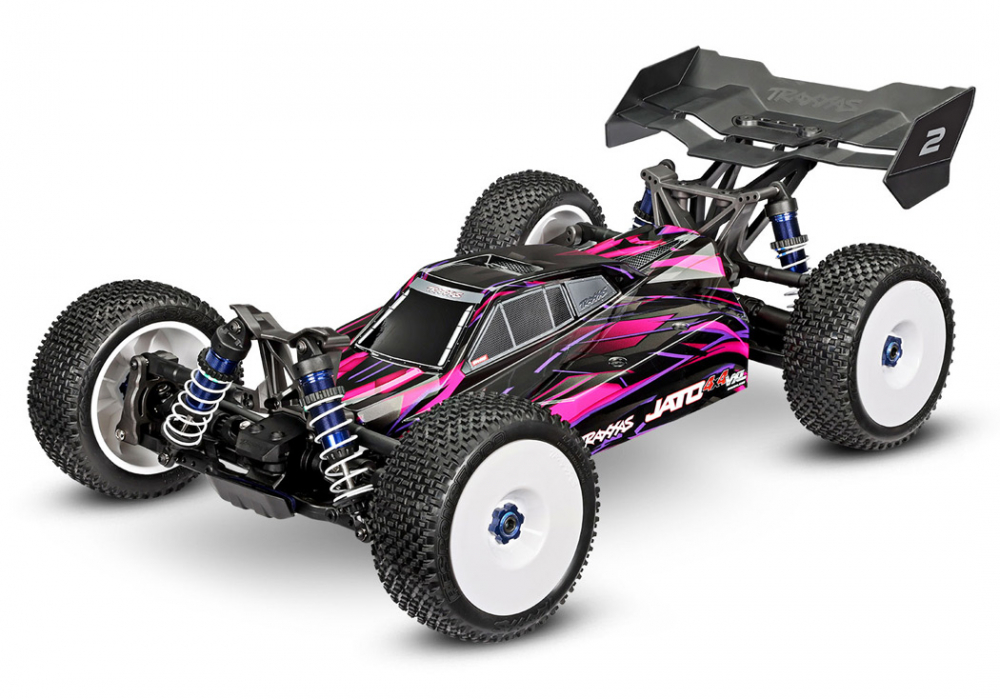

Jato 4x4 1/8 VXL-4s EDH RTR
What’s In The Box:
Jato 4X4 with VXL-4s ESC and 540XL motor
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries LiPo: 2827X, 2842X, 2843X, 2844R, 2869X, 2857X, 2889X
NiMh: 2923X, 2926X, 2940X, 2941X, 2960X, 2961X
Charger: Traxxas EZ-Peak Live charger (2970GX) is recommended for easy and fast charging performance.
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Jato 4X4 with VXL-4s ESC and 540XL motor
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries LiPo: 2827X, 2842X, 2843X, 2844R, 2869X, 2857X, 2889X
NiMh: 2923X, 2926X, 2940X, 2941X, 2960X, 2961X
Charger: Traxxas EZ-Peak Live charger (2970GX) is recommended for easy and fast charging performance.
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Description
Article no.: T18.90386-4
Specs:
Length: 517 mm
Width: 305 mm
Ground Clearance: 26 mm (center)
Weight (no battery): 2.54 kg
Height (overall): 179 mm
Wheelbase: 320 mm
Shock Length (front & rear): 101 mm - XX-long
Speed Control: Velineon VXL-4s™ electronic speed control
Motor (electric): Velineon 540XL brushless
Overall Drive Ratio: 10.16:1
Differential Type: Hardened steel bevel, sealed, limited slip
ear Pitch: 32
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4X4 with Torque-Biasing Center Drive
Steering: Dual-bellcrank with integrated servo saver
Tires: Response Pro S1-compound with foam inserts
Tire Diameter: 114 mm (front and rear)
Wheels (front/rear): 78 mm 3" dished wheels
Radio System: TQi 2.4 GHz (2-channel)
Servo: Waterproof digital 2075 servo (125 oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 165x50x35 mm
Motor Specs:
Type: Velineon 540XL 2400 Kv sensorless brushless
Weight: 317 g
Length: 91 mm
Diameter: 36 mm
Connector Type: Traxxas 6.5 mm bullet connectors
ESC Specs:
Input Voltage (cells): 2s-4s LiPo (7.4 V - 16.8 V)
Case Size: 61x53x36 mm
Weight: 119 g
BEC Voltage: Selectable 6.0 or 7.4 volts
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Thermal Protection: Two-stage thermal shutdown
Ports: RX input, auxiliary fan connector
Length: 517 mm
Width: 305 mm
Ground Clearance: 26 mm (center)
Weight (no battery): 2.54 kg
Height (overall): 179 mm
Wheelbase: 320 mm
Shock Length (front & rear): 101 mm - XX-long
Speed Control: Velineon VXL-4s™ electronic speed control
Motor (electric): Velineon 540XL brushless
Overall Drive Ratio: 10.16:1
Differential Type: Hardened steel bevel, sealed, limited slip
ear Pitch: 32
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4X4 with Torque-Biasing Center Drive
Steering: Dual-bellcrank with integrated servo saver
Tires: Response Pro S1-compound with foam inserts
Tire Diameter: 114 mm (front and rear)
Wheels (front/rear): 78 mm 3" dished wheels
Radio System: TQi 2.4 GHz (2-channel)
Servo: Waterproof digital 2075 servo (125 oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 165x50x35 mm
Motor Specs:
Type: Velineon 540XL 2400 Kv sensorless brushless
Weight: 317 g
Length: 91 mm
Diameter: 36 mm
Connector Type: Traxxas 6.5 mm bullet connectors
ESC Specs:
Input Voltage (cells): 2s-4s LiPo (7.4 V - 16.8 V)
Case Size: 61x53x36 mm
Weight: 119 g
BEC Voltage: Selectable 6.0 or 7.4 volts
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Thermal Protection: Two-stage thermal shutdown
Ports: RX input, auxiliary fan connector
Colour
Price
Pink
6,795 SEK
Orange
6,795 SEK
Blue
6,795 SEK
Green
6,795 SEK
- BrandTraxxas
- Secure payment by card
- Send e-mail or chat with us if we are online
- We ship world wide
We reserve the right for typos and errors in article descriptions
