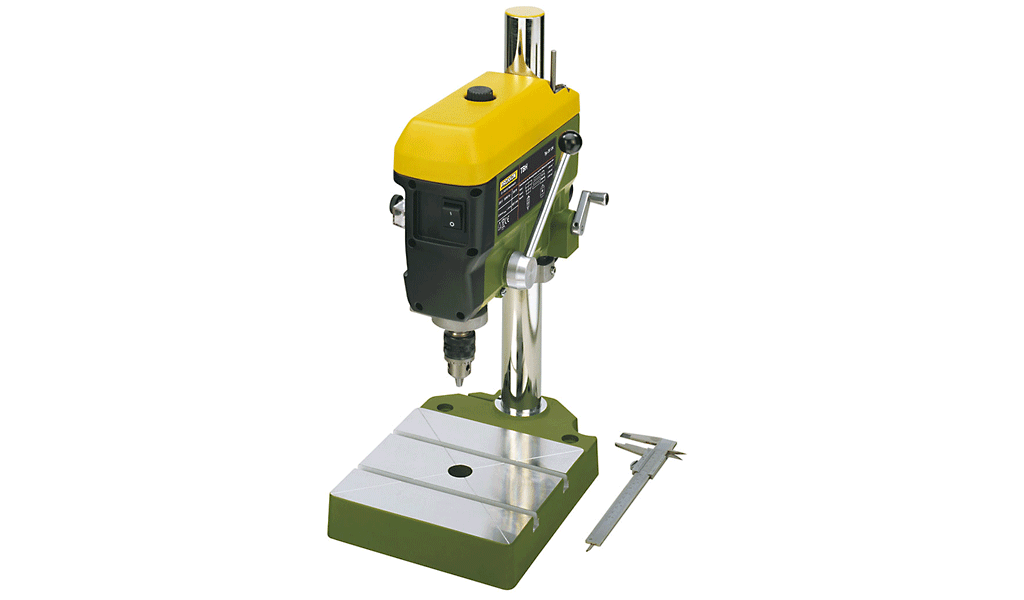

BORDSBORRMASKIN TBH 240 V, 3 HASTIGHETER
5,660 SEK
Bench drill press TBH
Practical height adjustment via toothed rack with easy to operate crank.
Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range. Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2" thread for the corresponding chuck (industrial quality). Spindle with additional fit for steel collets NO 28 200. Ideal for jig boring with the compound table KT 150.
Technical data:
230 Volt. Spindle rotational speeds 1,080 - 2,400 and 4,500rpm. Sliding sleeve stroke 63mm. Height adjustment via crank 70mm. Throat 140mm. Usable table surface 200 x 200mm. Column 45 x 500mm. Tool holder up to 10mm. Drilling performance in steel 10mm.
Practical height adjustment via toothed rack with easy to operate crank.
Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range. Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2" thread for the corresponding chuck (industrial quality). Spindle with additional fit for steel collets NO 28 200. Ideal for jig boring with the compound table KT 150.
Technical data:
230 Volt. Spindle rotational speeds 1,080 - 2,400 and 4,500rpm. Sliding sleeve stroke 63mm. Height adjustment via crank 70mm. Throat 140mm. Usable table surface 200 x 200mm. Column 45 x 500mm. Tool holder up to 10mm. Drilling performance in steel 10mm.
Description
Article no.: P11.28124
- BrandProxxon
- Mfg. item no28124
