Motor Specs (Velineon 540XL):
Type: 2400 kv sensorless brushless
Weight: 317g
Length: 91mm
Diameter: 36mm
Connector Type: Traxxas 6.5mm bullet connectors ESC Specs (VXL-4s):
Input Voltage: 3S?4S LiPo (11.1V ? 16.8V)
Case Size: 72 x 59 x 49 mm
Weight: 201g
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Motor Connectors: Traxxas 6.5mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports: RX input, auxiliary fan, Traxxas accessory port Profile Selection:
Sport Mode: 100% Forward, 100% Brakes, 100% Reverse)
Race Mode: 100% Forward, 100% Brakes, No Reverse
Training Mode***: 50% Forward, 100% Brakes, 50% Reverse What?s In The Box:

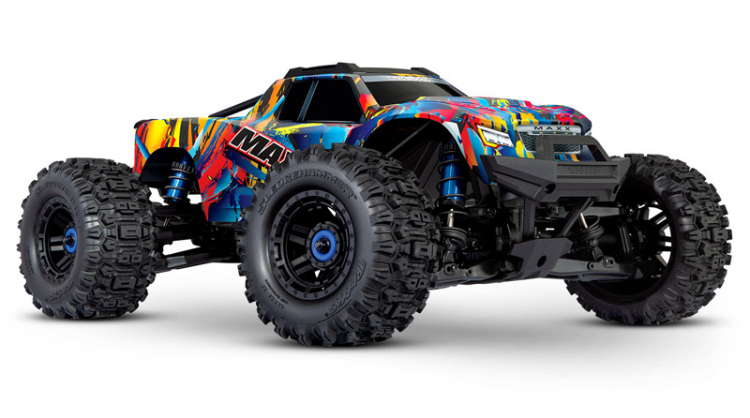

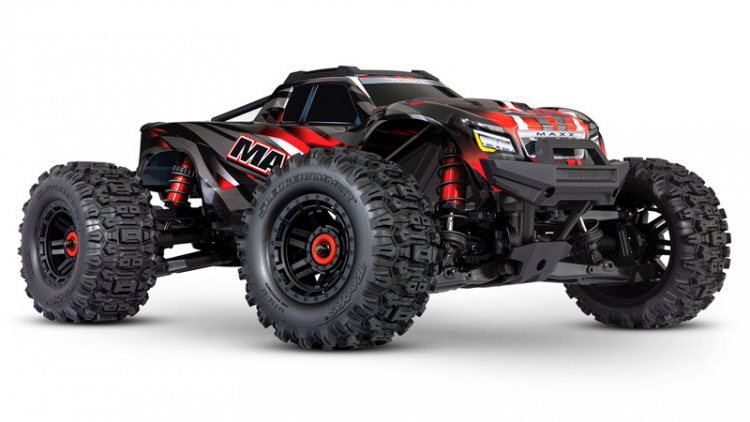

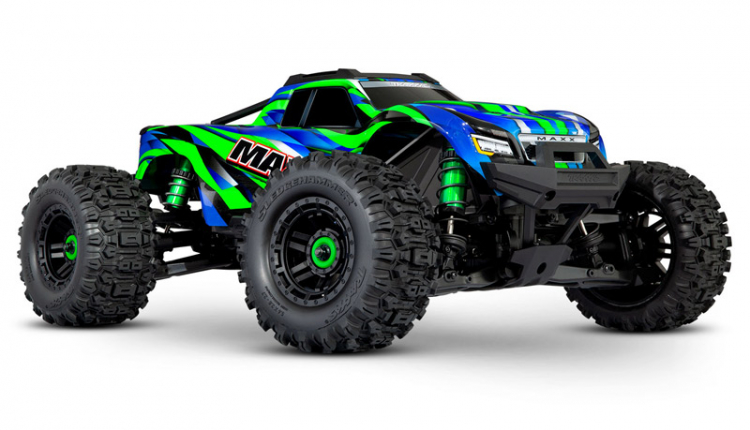

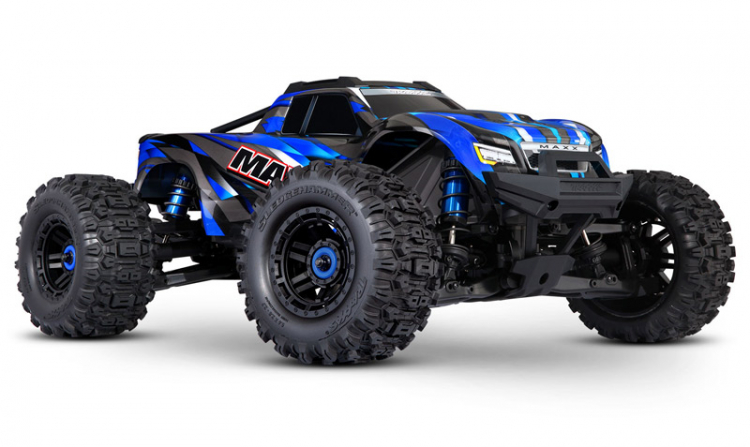

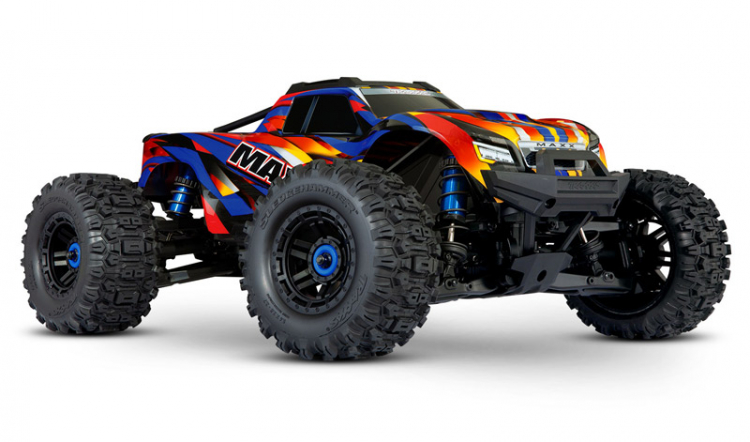

Maxx with WideMAXX, Ready-To-Race® model with Traxxas 540XL brushless motor
VXL-4s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi? 2.4GHz radio system
High quality maintenance tools What You?ll Need:
LiPo Battery: Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported
LiPo Balance Charger with iD?: Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971GX)
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
